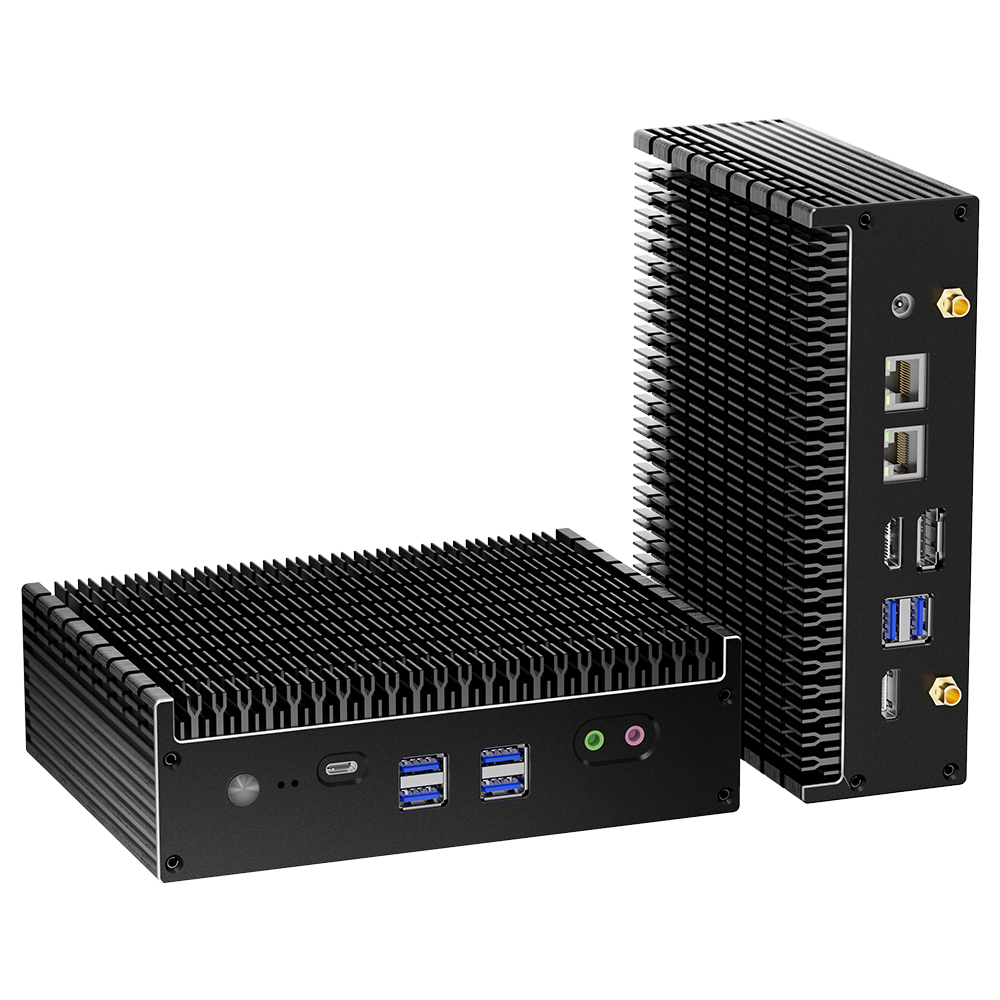

Chatreey IT12-F Mini PC Intel Core i7 1255U

  • Intel 12th Core i7 1235U, 10 Cores 12 Threads.
  • Fanless design, metal casing, operates quietly.
  • Dual-channel DDR4 memory, supports up to 64GB.
  • Supports PCIE 3.0/4.0 SSD, with a maximum capacity of 2TB.
  • WIFI 6 and 2 x 2.5G network ports.
  • Pre-installed with Windows 11 Pro and supports Linux.
  • Supports 4 displays with a maximum output of 4K.
Description
Chatreey IT12-F is a compact Fanless mini PC with a 12th Gen Intel Core i7-1255U processor (10 cores, 12 threads, up to 4.7GHz). It offers strong performance, silent fanless operation, and excellent durability. With WiFi 6, it ensures fast, low-latency wireless connectivity. A Thunderbolt 4 port supports 40Gbps data transfers and 4K monitor connections. Compact and feature-rich, it’s ideal for modern work and home use.Chatreey IT12-F Mini PC Chatreey IT12-F Mini PC comes with two 2.5G network ports, supports 1G and 100 Mbps networks, with compatibility, suitable for mixed network environments. The Chatreey IT12-F is equipped with one DP, Thunderbolt 4, and two HDMI ports, supporting 4-screen display to enhance work efficiency. The Chatreey IT12-F is equipped with a fully functional Thunderbolt 4 interface, allowing for the connection of external graphics cards. It supports external monitors (high-resolution displays), docks, external SSDs, charging, and other functions. Chatreey IT12-F Mini PC features a fanless design for 100% silence. Better heat dissipation for quieter operation. The Chatreey IT12-F Mini PC has powerful features and is used in various fields such as offices and industries. The Chatreey IT12-F is equipped with WiFi 6, with a maximum transmission speed of up to 2.4 Gb/s. Chatreey IT12-F supports dual-channel SSDs with PCIE3.0 and PCIE4.0, supports two DDR4 memory modules, and can accommodate up to 64GB, meeting storage needs. The Chatreey IT12-F comes with two USB 2.0 ports, two HDMI 2.0 ports, four USB 3.2 ports, and a fully functional Thunderbolt 4 port, along with two Ethernet ports. It offers a wide range of connections to meet both work and home needs.
Model IT12-F
Processor Intel Core i5 1235U/i7 1255U
Memory 2xDDR4 so-dimm 3200Mhz
Graphics Intel® Iris® Xe Graphics
Storage M.2 NVMe SSD 2280
Operating Windows 11 Pro
Connectivity Wi-Fi 6, Bluetooth 5.0
Ports HDMI/DP/USB3.2/Thunderbolt 4/Audio/RJ45
Slots 2xDDR4/2xM.2 2280
Power Adapter 19V 3.42A 65W
Weight 0.9KG
Product Dimensions (WxLxH) 158mm*128mm*52mm
For more information, you can visit the support page of IT12-F Fanless Mini PC.
More product specifications are available for download in the product datasheet. Download
Shipping & Delivery

Dear customers, thank you for choosing our mini PC products. Here are key details regarding shipping:

  1. Coverage: We offer worldwide shipping services.

  2. Methods: We use reliable logistics partners for swift and secure delivery.

  3. Dispatch: Orders are usually dispatched within 1-3 business days.

  4. Delivery: Times vary based on location and chosen service. Tracking is provided.

  5. Costs: Shipping costs depend on order content, address, and method.

For questions or special requests, please contact our customer service.

Thank you for your support and trust!



Product Parameters
Model IT12-F
Processor Intel Core i5 1235U/i7 1255U
Memory 2xDDR4 so-dimm 3200Mhz
Graphics Intel® Iris® Xe Graphics
Storage M.2 NVMe SSD 2280
Operating Windows 11 Pro
Connectivity Wi-Fi 6, Bluetooth 5.0
Ports HDMI/DP/USB3.2/Thunderbolt 4/Audio/RJ45
Slots 2xDDR4/2xM.2 2280
Power Adapter 19V 3.42A 65W
Weight 0.9KG
Product Dimensions (WxLxH) 158mm*128mm*52mm

For more information, you can visit the support page of IT12-F Mini PC.

More product specifications are available for download in the product datasheet.

Download

Product Features

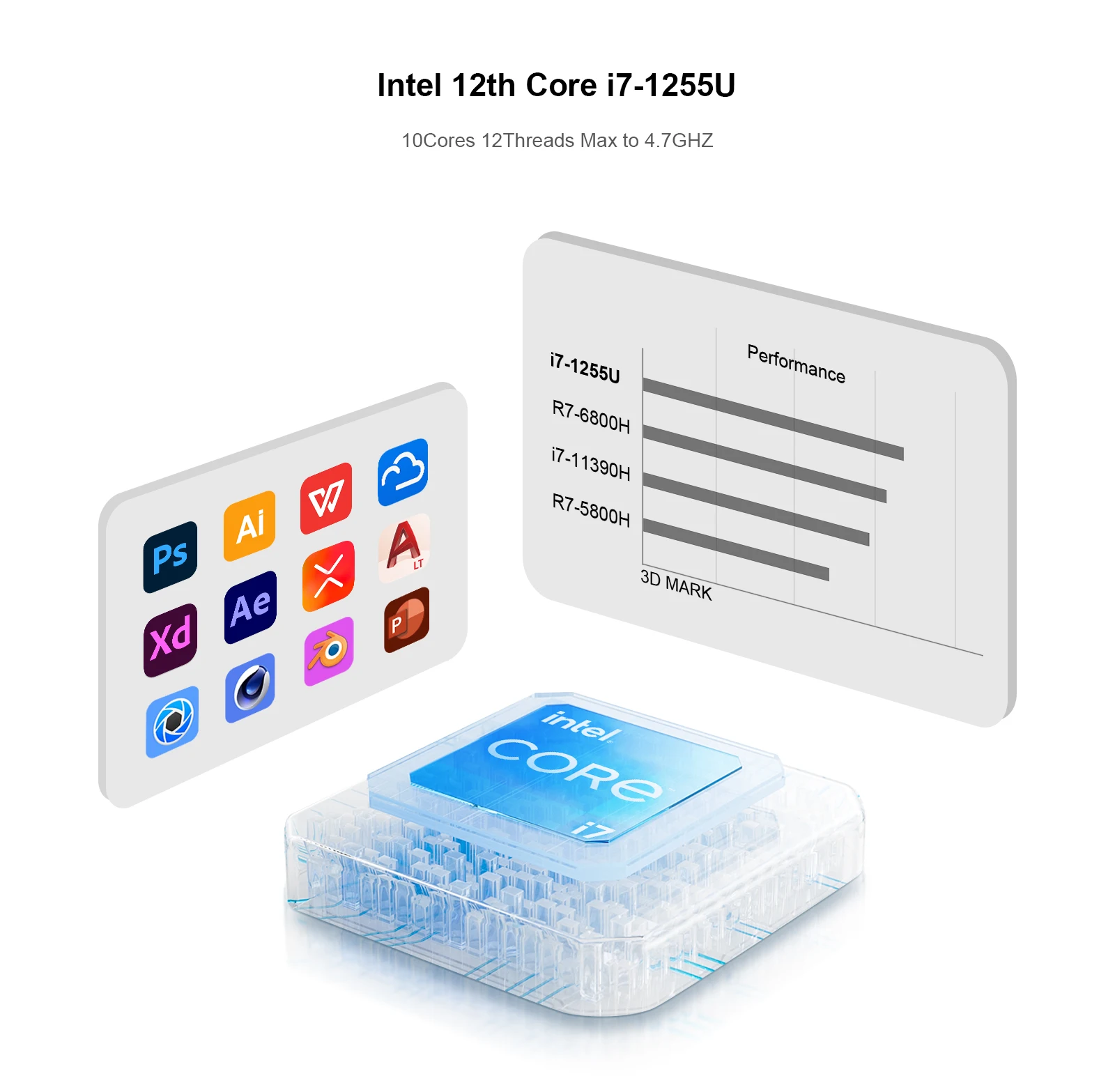

The Chatreey IT12-F is a powerful and compact mini computer, equipped with the 12th generation Intel Core i7-1255U processor. This processor features a design with 10 cores (2 performance cores + 8 efficient cores) and 12 threads, providing excellent multitasking capabilities. Its base frequency is 3.5 GHz, reaching up to 4.7 GHz, delivering outstanding computing performance that easily meets the demands of daily office work, creative design, and entertainment.

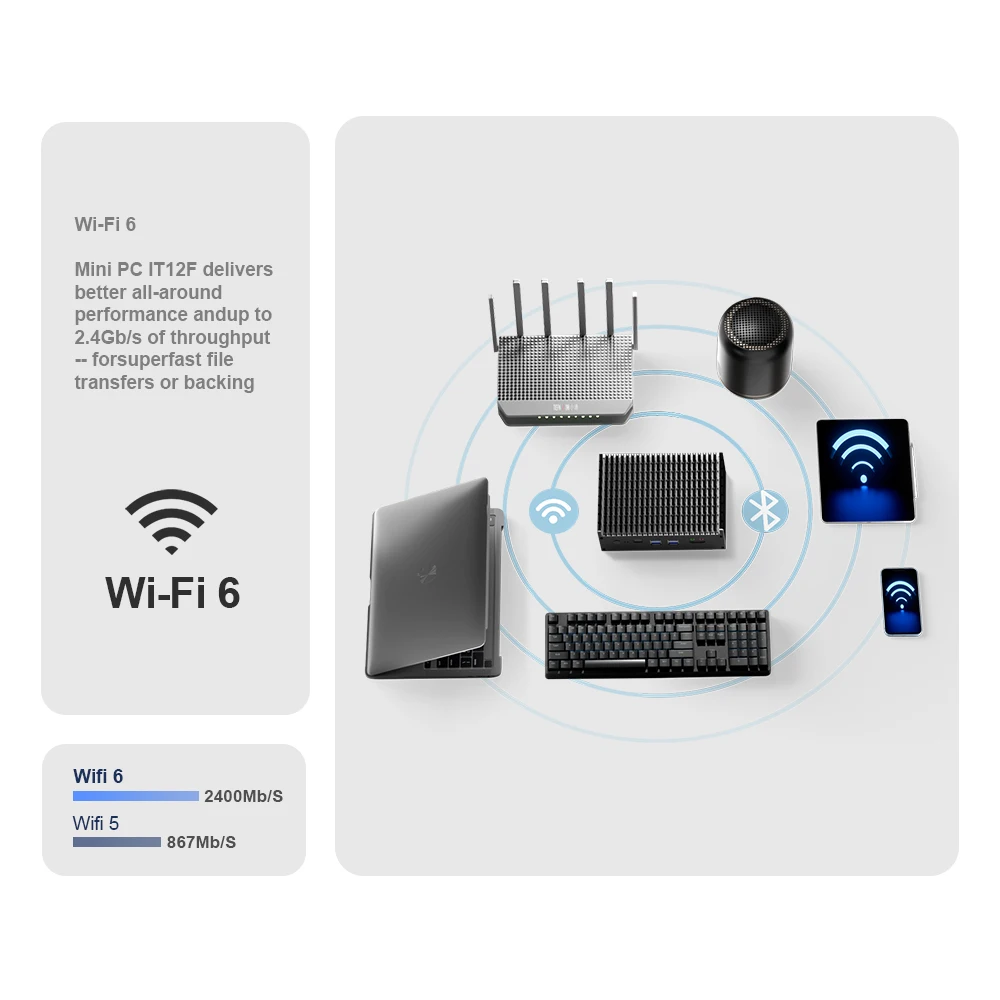

The product adopts a fanless design, ensuring a silent operation while reducing dust accumulation, thus enhancing the product's lifespan. Equipped with WiFi 6 technology, it offers faster wireless network speeds and lower latency, allowing you to enjoy a stable and high-speed internet experience whether downloading large files, conducting HD video conferences, or gaming online.

Additionally, the Chatreey IT12-F features advanced Thunderbolt 4 ports, supporting data transfer speeds of up to 40Gbps, enabling connections to various high-performance devices such as 4K monitors or high-speed storage devices, creating a modern and efficient working and entertainment environment for users.

With its compact design, powerful performance, and rich features, the Chatreey IT12-F is a mini computer suitable for modern living and productivity applications, allowing you to enjoy unparalleled performance even in limited spaces.
